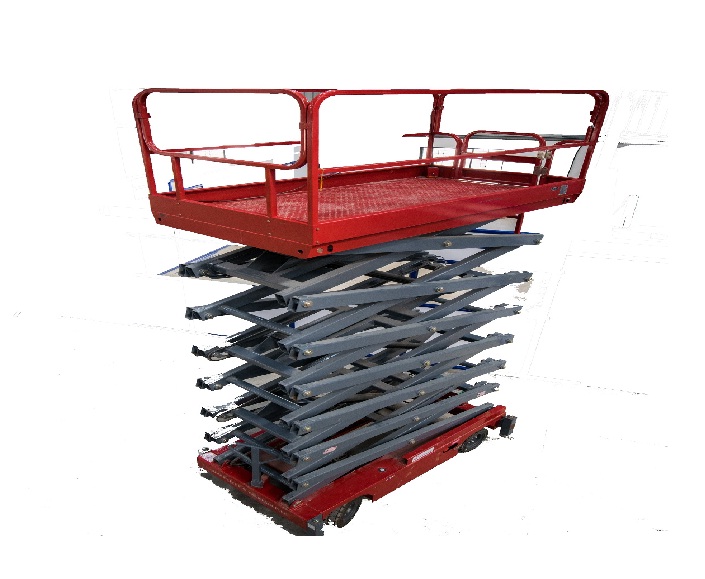

With 10m working height; this compact and lightweight machine can be used in all indoor applications. Comprising of powerful hydraulic motors along with manual stabilizers; this machine takes care of all your working as well as safety aspects.
| Model Measurements | DS-1010AC/DS-1010AM |
| Max Working Height | 32ft |
| Maximum Platform Height | 26ft |
| Lowered Platform Height | 4.8ft |
| Platform Length | 6.9ft |
| Platform Width | 3.2ft |
| Guardrail Height | 3.2 ft |
| Vehicle Dimensions | h-8.5ft , l- 6.9ft, w-3.2ft |
| Ground Clearance | 0.3 ft |
| Maximum
Occupancy** | 2
People |
| Lift
Capacity | 350
Kgs |
| Control | Dual
Control (Chassis &Platform) |
| Drive | NA |
| Power
Source | 24V DC (Four 6V 225AhBatteries) /230V 50Hz Single Phase Supply |
| Hydraulic
Capacity | 20L (5.2 gals) |
| Weight*** | 1150Kgs./1000 Kgs. |
